Multicore pvc insulated flexible cable , copper flexible electrical wire cable
1. Product description
Multicore pvc insulated flexible cable , copper flexible electrical wire cable composed of a number of electrical conductors, common 2 core, 3 core, 4 core, 5 core, etc., can also be customized according to the demand of special core wire, conductor selection of copper or aluminum and other conductive materials. The multi-core structure enables the cable to transmit multiple circuits or signals at the same time and is suitable for applications requiring multiple functions and connections. PVC is used as insulation material around the conductor (core wire) of the cable. And has the ability of anti-interference, can effectively reduce electromagnetic interference, can effectively isolate conductors, prevent current leakage and short circuit. Multi-core PVC insulated flexible cables can be used in different environmental conditions, including indoor and outdoor applications. In outdoor applications, additional external protective layers or anti-UV treatments may be required to improve the durability and protection of the cable.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
2. Product information
| Product Name | Multicore pvc insulated flexible cable , copper flexible electrical wire cable |
| Product certification | Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
| Product application | Machine equipment connection |
| Temperature | -20℃~80℃ |
| Oil resistance | 60 ℃ or 80 ℃ Oil |
| Flame rated | VW-1,FT1,FT2,IEC60332-1-3 |
| Voltage withstand test | AC 2.0kV/1min |
| Free sample | Accept |
| Percent of original elongation | 1~2 weeks |
| After-sales service | Authentic guaranteed, factory outlets center |

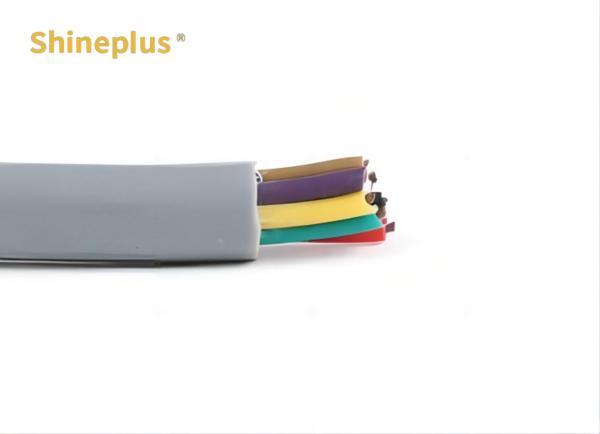

3. Picture of real products
4. Application area
I: Building and construction industry: Multi-core PVC insulated flexible cables are widely used in the internal wiring of buildings for power transmission, lighting systems, fire alarm systems, security monitoring systems, etc.
II: Industrial manufacturing: In industrial manufacturing, multi-core PVC insulated flexible cables are often used for power transmission and signal transmission of machinery and equipment, automation systems and control systems.
III: Transportation: Multi-core PVC insulated flexible cable can be used in the field of transportation, such as railway signaling system, electric vehicle charging pile, ship power system, etc.
5. Feature
I: Flexibility: Multi-core PVC insulated flexible cable has good flexibility and can be easily bent and installed in narrow or complex Spaces. This flexibility makes it suitable for applications that require frequent movement or bending, such as machine equipment and mobile systems.
II: Versatility: The multi-core structure enables the cable to transmit multiple signals or circuits to meet the needs of different applications. It can be used in power transmission, signal transmission and control systems, providing a convenient integrated solution.
III: Economical: Compared to other types of cable, multi-core PVC insulated flexible cable is an economical choice. It offers reliable performance at a relatively low price, suitable for the needs of general applications.
6. Main products
I: Wiring harness of industrial control equipment:
Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.
II: Medical equipment wire harnesses:
Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.
III: New energy wire harnesses:
Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
